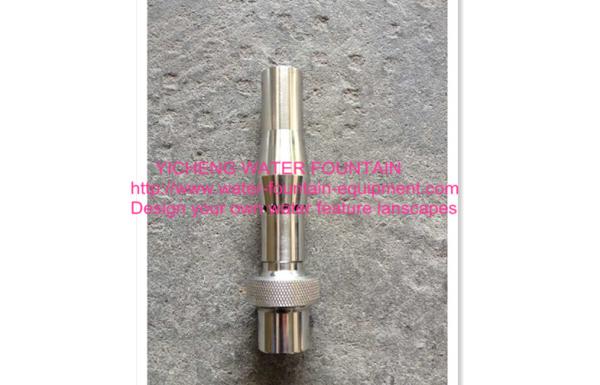

DN15 - DN40 Brass Copper And SS304 Water Fountain Jets For Swimming Pools
Description:
The Foam / Air Mixed Nozzle Water Fountain Spray Nozzle is the combination of adjustable straight spray nozzles. If all adjustable straight spray nozzles are in same specification, the water column is straight and powerful. If their sizes are different, the water column has stratified effect. To some extent, the central Straight in Shower Nozzle Water Jet Fountain Nozzle is the necessary part for the large-scale fountains.
How to install the fountain ?
Only 5 simple steps to build water fountain
1. Open package
2.Take fountain equipment out off wooden box
3. Put into water
4. Plug in
5. Enjoy
Also we can produce Customized Fountain
For a Customized fountain, you should to let us know the below questions,
1. the size of the pool of the fountain you will install the fountain.
2. the water height you want.
3. the depth of your pool for your fountain.
4. the voltage and frenquency of your power supply
Why us?
1) We are a professional producer and operator of water fountain/swimming pools/sauna/spa/ equipment.
2) We have our own factory which ensures the quality and price of our products.
3) We have over 9 years experience in foreign trade & over 15 years in internal trade.
4) Marketing distributes to Europe, America,Middle East, Africa, South Africa, Asia etc.
5) Enjoying a good reputation among customers.
6) With BV, CE, SAA, ISO, ROSH etc. international certificates.
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size |
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) |
| CJqT40 | 150-250 | 18-25 | 2-5 | Straight or parabola | 1 1/2" | internal thr. | 35 | 1 | 182 | 55 |
| CJqT25 | 100-200 | 8-15 | 1.5-4.0 | 1" | 30 | 1 | 175 | 45 |
| CJqT20 | 80-150 | 4-9 | 1-3.0 | 3/4" | 23 | 1 | 155 | 38 |
| CJqT15 | 80-150 | 2-4 | 0.5-2.0 | 1/2" | 19 | 1 | 148 | 35 |
Brass and Brass Chromplated Material:
| Model | Performance | Water Inlet | Water Outlet | Size |
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) |
| CJqT40 | 150-250 | 18-25 | 2-5 | Straight or parabola | 1 1/2" | internal thr. | 35 | 1 | 182 | 55 |
| CJqT25 | 100-200 | 8-15 | 1.5-4.0 | 1" | 30 | 1 | 175 | 45 |
| CJqT20 | 80-150 | 4-9 | 1-3.0 | 3/4" | 23 | 1 | 155 | 38 |
| CJqT15 | 80-150 | 2-4 | 0.5-2.0 | 1/2" | 19 | 1 | 148 | 35 |
