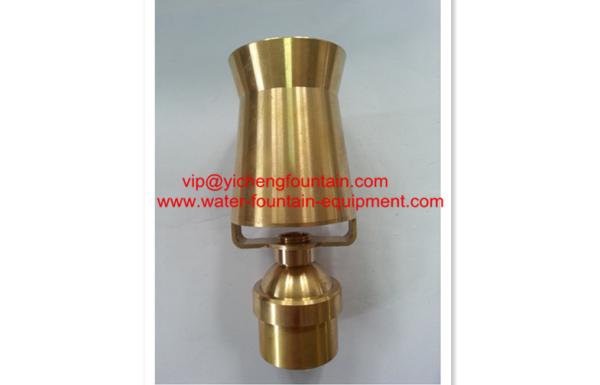

Brass Material Adjustable Cascade Water Fountain Nozzles Of Great Foam DN15 - DN80

Name: Brass Material Adjustable Cascade Water Fountain Nozzles Of Great Foam DN15 DN80
Brand: YICHENG
Price: 1 USD

Wholesale Brass Material Adjustable Cascade Water Fountain Nozzles Of Great Foam DN15 - DN80 from china suppliers

Brand Name : YICHENG

Model Number : CBtT series

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : Ex-worked

Supply Ability : 1, 000,000pcs/week

Delivery Time : 5-10 days

Packaging Details : carton

Material : Fully Brass material

Thread : Female (internal thread)

Size : DN15 - DN80

Outlet : one piece

Pattern : Straight high foam

Adjustalbe : With ball joint

Contact Now

Brass Material Adjustable Cascade Water Fountain Nozzles Of Great Foam DN15 - DN80

Specifications

Brass Material:

Model	Performance				Water Inlet		Water Outlet		Size		Weight
Model	pressure (Kpa)	capacity (m3/h)	height (m)	coverage (m)	diameter (inch)	connection type	diameter (mm)	number (pcs)	height (mm)	max dia. (mm)	(kg)
CBtT80	80-450	55-65	1-12	1-1.5	3"	external thr.	Ф91 * Ф24 * 1		283	123	1.66
CBtT65	80-450	55-65	1-12	1-1.5	2 1/2"	internal thr.	Ф91 * Ф24 * 1		283	123	1.66
CBtT50	80-400	35-45	1-10	0.8-1.0	2"		Ф73 * Ф19 * 1		200	94	1.1
CBtT40	50-300	20-35	1-8	0.5-0.6	1 1/2"		Ф66 * Ф16 * 1		180	86	0.75
CBtT25	40-200	8-12	1-5	0.2-0.3	1"		Ф46 * Ф12 * 1		123	60	0.35
CBtT20	40-100	3-5	1-3	0.2	3/4"	external thr.	Ф30 * Ф10 * 1		89	44	0.13
CBtT15	40-100	2-4	1-3	0.15	1/2"	internal thr.	Ф25 * Ф8 * 1		71	33	0.07

Description:

The Cascade Nozzle is the single most popular effect used in commercial and architectural fountains through modern times. They can be used in a wide variety of ways to achieve spectacular effects. Whatever your plan or inspiration calls for, the Cascade can probably fill the bill. A water entraining venturi type nozzle, the Cascade augments its spout effect by adding water volume from the pool. In doing so, a very heavy, powerful effect is achieved with little aeration.

Cascade nozzles are used widely in architectural fountains, due to their high visibility and good wind resistance, exhibiting a very "hard" visual and audible impact suitable for large pools and outdoor applications where noise masking water effects are desired. The Cascade is water level dependent, and requires a controlled water level. In addition, opaque water walls are easily achieved when several nozzles are placed in close proximity.
