Stainless Steel Material Pirouette Water Fountain Nozzles With 4 Arms Spraying DN25

Name: Stainless Steel Material Pirouette Water Fountain Nozzles With 4 Arms Spraying DN25
Brand: YICHENG
Price: 1 USD

Wholesale Stainless Steel Material Pirouette Water Fountain Nozzles With 4 Arms Spraying DN25 from china suppliers

Brand Name : YICHENG

Model Number : SXnT series

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1, 000,000pcs/week

Delivery Time : 5-10 days

Packaging Details : carton

Material : Fully Stainless steel

Size : DN15, DN20, DN25, DN40

Outlet : 5pcs

Arms of SS material : 4 arms spraying

Diameter of outlet : 4mm

Connection : Female thread

Contact Now

Stainless Steel Material Pirouette Water Fountain Nozzles With 4 Arms Spraying DN25

Specifications

Stainless Steel 304 Material:

Model	Performance				Water Inlet		Water Outlet		Size		Weight
Model	pressure (Kpa)	capacity (m3/h)	height (m)	coverage (m)	diameter (inch)	connection type	diameter (mm)	number (pcs)	height (mm)	max dia. (mm)	(kg)
SXnT40	80-150	8-10	2-4	1.5-2.5	1 1/2"	internal thr.	Ф6 * 4		115	330	1.2
SXnT25	80-150	4-6	1-3	1-1.5	1"	internal thr.	Ф4 * 4		124	200	0.7

* Stainless Steel material only have 4 arms

Brass and Brass Chromplated Material:

Model	Performance				Water Inlet		Water Outlet		Size		Weight
Model	pressure (Kpa)	capacity (m3/h)	height (m)	coverage (m)	diameter (inch)	connection type	diameter (mm)	number (pcs)	height (mm)	max dia. (mm)	(kg)
SXnT40	80-150	8-10	2-4	1.5-2.5	1 1/2"	internal thr.	Ф4 * 1,Ф6 * 6		115	330	1.08
SXnT25	80-150	4-6	1-3	1-1.5	1"		Ф4 * 1,Ф4 * 6		124	225	0.62
SXnT20	50-80	2-3	0.8-1	0.6-0.8	3/4"		Ф4 * 1,Ф4 * 6		120	182	0.46
SXnT15	50-80	2	0.8-1	0.5	1/2"		Ф4 * 1,Ф3.3 * 6		100	120	0.38

Description:

The Pirouette Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.

The Pirouette Nozzle is the one which can rotate while working by the centrifugal force and counterforce of water. It can produce different shapes and effect by changing the number of nozzles and angle.

To use multiple line hydraulic reaction driving nozzle rotate, the curve of the centrifugal forming outward spiral twist in the air, at night under lights mapping playing like a ribbon in the sky.

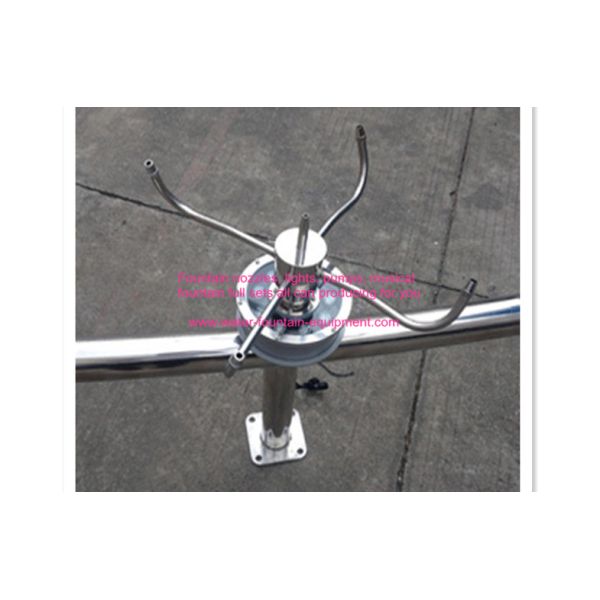

Stainless steel type has only 4 arms to rotating, but in the middle, there is another water outlet to spray water.

Installation:

Stainless Steel Material Pirouette Water Fountain Nozzles With 4 Arms Spraying DN25
